★ Virtual Basys 3 · runs in your browser

The FPGA Arcade

A whole Digilent Basys 3 board, simulated on your own computer. Load real Verilog, VHDL and SystemVerilog designs and play them with your keyboard, mouse or game pad. No board, no cables, no install.

30 games 32 sensor demos 20+ sensors & Pmods Source on GitHub

⚡ Launch the simulator browse the games ↓

No board needed

The switches, buttons, LEDs, 7-segment display and VGA screen of a Basys 3 all run in the browser tab.

Play with what you have

Arrow keys, WASD, mouse, SNES and NES pads or a USB controller. Board buttons map to your keyboard.

Real sensors, simulated

Distance, tilt, force, IR remotes, RFID, keypads, joysticks and displays, each with an on-screen control.

Three HDLs

Verilog, SystemVerilog and VHDL designs, the same code you would put on a real board.

Read the source

Every game links to its GitHub code, so you can see exactly how it was built and borrow ideas.

Made for learning

Ideal for labs and course projects: test a design at home, then load it on the board in class.

How it works

Pick a game below, or press Launch to open the empty board.
Read the controls on its card: which keys, switches or sensors it uses.
Play. Flip the switches, press the buttons, and watch the LEDs and screen react just like the real board.

⚡ Launch the simulator

Sensors and add-ons it can simulate

Ultrasonic distance Load cell (HX711) IR obstacle & proximity IR remote Accelerometers Vibration sensor Force sensor Potentiometer Rotary encoder RFID reader 4×4 keypad Joystick OLED display 8×8 LED matrix Speaker & buzzer PS/2 keyboard & mouse USB-UART terminal SNES / NES pads

All games and demos

Bee Invaders (Space Invaders style) Verilog · buttons, sprites from .mem files, Clocking Wizard (no .xci) ▶ Play code ↗

FlaPGA Mario (Flappy Bird style) Verilog · buttons, 3 ROM images, BGM on JXADC ▶ Play code ↗

Flappy Bird with Q-learning AI Verilog · USB keyboard (PS/2), 17 Block Memory ROMs from .coe files, a custom keyboard IP ▶ Play code ↗

Tetris SystemVerilog · buttons, Clocking Wizard 30 MHz + 25.175 MHz, music on JB1/JC1 ▶ Play code ↗

Pac-Man (VHDL, 800x600) VHDL · serial terminal (USB-UART 9600 baud), Clocking Wizard 40 MHz, 3 Block Memory ROMs (.xcix) ▶ Play code ↗

Two-player reaction time game (ENEL453) VHDL · VGA, buttons, switches, 7-segment, buzzer ▶ Play code ↗

PONG with score text (keyboard) Verilog · USB keyboard (PS/2), text ROM ▶ Play code ↗

Pong for two players (keyboard) Verilog · USB keyboard (PS/2), 7-segment score ▶ Play code ↗

Pong (VHDL, buttons) VHDL · buttons, switches ▶ Play code ↗

Snake (buttons, timed mode) Verilog · buttons, switches, 7-segment score ▶ Play code ↗

Snake (keyboard) Verilog · USB keyboard (PS/2) ▶ Play code ↗

HC-SR04 ultrasonic sensor test Verilog · ultrasonic sensor on JA, 7-segment ▶ Play code ↗

Undertale-style battle Verilog · USB-UART keyboard, sprite images (.list ROM files) ▶ Play code ↗

Tic-Tac-Toe (XO) Verilog · buttons, VGA ▶ Play code ↗

Sprite game console (space duel) Verilog · 2 SNES game pads, a small CPU + tile graphics ▶ Play code ↗

Bang Bang Tank (Tank 1990) SystemVerilog · buttons, PmodKYPD keypad, PS/2 keyboard ▶ Play code ↗

Flappy Square Verilog · buttons, VGA (3-3-2 colour) ▶ Play code ↗

Guitar Hero SystemVerilog · 4 external buttons (frets), speaker, 800x600 VGA ▶ Play code ↗

Marble Maze (LED matrix) SystemVerilog · 2 MAX7219 8x8 LED matrices, buttons, 7-segment ▶ Play code ↗

Simon (LEDs + 7-segment) Verilog · buttons, LEDs, 7-segment ▶ Play code ↗

LED Ping-Pong (two players) Verilog · buttons, LEDs, 7-segment ▶ Play code ↗

Atari Pong VHDL · 4 external buttons (paddles), VGA ▶ Play code ↗

Tile world explorer SystemVerilog · buttons, scrolling tile map ▶ Play code ↗

Blackjack Verilog · buttons, LEDs, 7-segment ▶ Play code ↗

Stop the light (LED arcade) Verilog · buttons, LEDs, 7-segment ▶ Play code ↗

Dino Run (Chrome T-Rex) Verilog · buttons, VGA sprites ▶ Play code ↗

3D Raycasting shooter SystemVerilog · PS/2 keyboard, buttons, 3D raycasting ▶ Play code ↗

Square Catch Verilog · buttons, VGA, 7-segment ▶ Play code ↗

Slot Machine Verilog · buttons, switches, 7-segment ▶ Play code ↗

Minesweeper (SNES pad) Verilog · SNES pad via the Gamepad Pmod, VGA ▶ Play code ↗

Pong (one player) Verilog · buttons, switches, LEDs, 7-segment ▶ Play

IR drag race (two players) VHDL · 2 IR sensors, Clocking Wizard IP ▶ Play

Sensor dashboard Verilog · ultrasonic, load cell, 4x4 keypad, 800x600 ▶ Play

Snake with a USB keyboard Verilog · PS/2 keyboard on the USB port ▶ Play

Paint with a USB mouse Verilog · PS/2 mouse on the USB port ▶ Play

Pac-Man sprite from a ROM Verilog · Block Memory ROM IP (.coe) ▶ Play

Star catcher with a joystick Verilog · Digilent PmodJSTK on JA (SPI) ▶ Play

Sonar Flap (ultrasonic) Verilog · HC-SR04 ultrasonic sensor, VGA ▶ Play

Hand Pong (ultrasonic) Verilog · HC-SR04 ultrasonic sensor, VGA ▶ Play

Steady Hands (load cell) Verilog · HX711 load cell, VGA ▶ Play

Keypad Memory (Simon) Verilog · PmodKYPD 4x4 keypad, speaker, VGA ▶ Play

Keypad Whack-a-Mole Verilog · PmodKYPD 4x4 keypad, speaker, VGA ▶ Play

Math Sprint (keypad) Verilog · PmodKYPD 4x4 keypad, VGA ▶ Play

Rock Dodger (joystick) Verilog · PmodJSTK joystick, VGA ▶ Play

Pad Racer (SNES game pad) Verilog · SNES/NES game pad, VGA ▶ Play

Matrix Snake (8x8 LED matrix) Verilog · MAX7219 8x8 LED matrix, buttons ▶ Play

Aim Trainer (mouse) Verilog · PS/2 mouse on the USB port, VGA ▶ Play

Typing Rain (keyboard) Verilog · PS/2 keyboard on the USB port, VGA ▶ Play

Reflex Duel (2 IR sensors) Verilog · 2 IR obstacle sensors, VGA ▶ Play

Switch Catch (board only) Verilog · switches, LEDs, 7-segment, VGA ▶ Play

Binary Blitz (board only) Verilog · switches, 7-segment, VGA ▶ Play

Number Hunt (serial terminal) Verilog · USB-UART terminal 115200 baud, VGA ▶ Play

OLED Breakout (Pmod OLEDrgb) Verilog · Pmod OLEDrgb 96x64 colour OLED, speaker ▶ Play

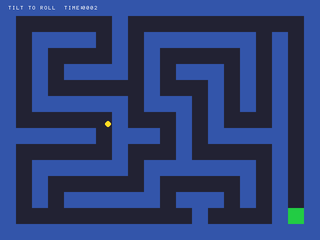

Tilt Maze (accelerometer) Verilog · Pmod ACL2 accelerometer, VGA ▶ Play

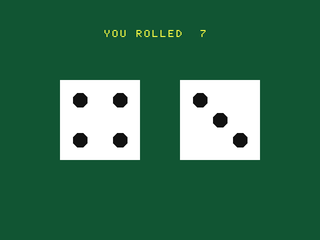

Shake Dice (vibration sensor) Verilog · SW-420 vibration sensor, VGA ▶ Play

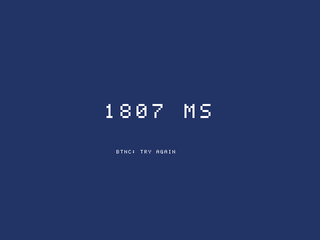

Hand Reflex (proximity sensor) Verilog · IR proximity sensor, VGA ▶ Play

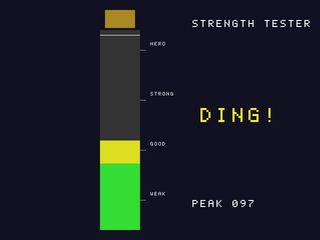

Strength Tester (pressure sensor) Verilog · Force sensor (FSR) on Pmod AD1, VGA ▶ Play

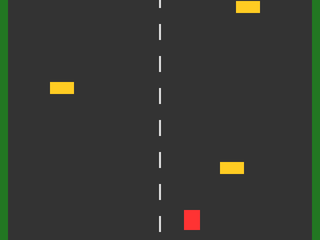

Knob Racer (rotary encoder) Verilog · KY-040 rotary encoder on Pmod JA, VGA, 7-segment, LEDs ▶ Play

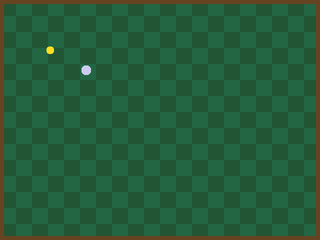

Tilt Ball (MPU6050) Verilog · MPU6050 accelerometer (I2C) on Pmod JA, VGA, 7-segment, LEDs ▶ Play

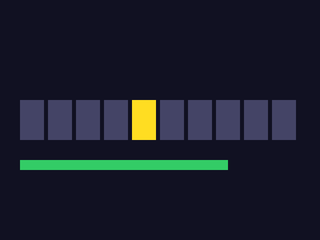

Remote Reflex (IR remote) Verilog · IR receiver + NEC remote on Pmod JA, VGA, 7-segment, LEDs ▶ Play

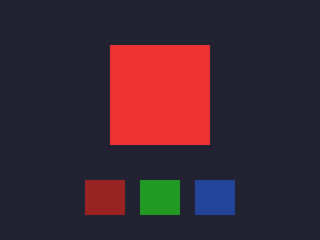

Card Match (RFID) Verilog · MFRC522 RFID reader (SPI) on Pmod JA, VGA, 7-segment, LEDs ▶ Play

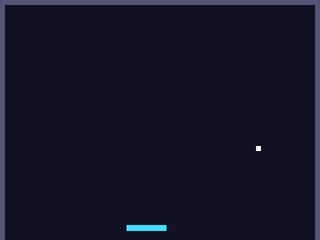

Dial Pong (potentiometer) Verilog · Potentiometer on the JXADC header (XADC), VGA, 7-segment, LEDs ▶ Play
